H100/H103 Handheld Barcode Scanner Fast and Accurate Data Collection for Manufacturing Warehousing Retail and Healthcare

Brand Name : SR

Model Number : H100/H103

Place of Origin : China

MOQ : 10PCS

Price : 13-20usd

Payment Terms : L/C,T/T

Supply Ability : 4000 pcs/day

Delivery Time : 5 working days

Packaging Details : corrugated paper box

Weight : 105g

ESD : ±8KV (Air)/±4KV (Contact)

FOV : 57.6°(O)/46.6°(H)/36.8°(V)

I/O Interfaces : USB/RS232/Button Trigger

Sensor Resolution : 640×480/1280×800

Aiming : LED/Laser

Contact Now

H100/H103 Handheld Barcode Scanner Fast and Accurate Data Collection for Manufacturing Warehousing Retail and Healthcare

Description:

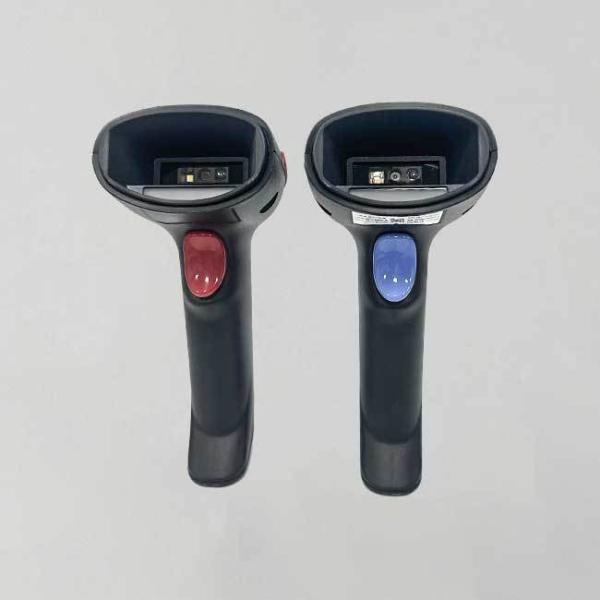

The H100/H103 handheld barcode scanner is a highly efficient and durable data collection device. It is specifically designed for quickly and accurately reading various types of barcodes, including long barcodes, damaged barcodes, large 2D barcodes, and screen barcodes. This scanner is comfortable to hold, lightweight, and portable, while also offering exceptional durability. It features IP42-rated water and dust resistance, can withstand drops from a height of 1.2 meters, and has a keyboard lifespan of up to three million keystrokes, making it ideal for environments requiring high-intensity use.

Parameters:

Primary Category	Secondary Category / Parameter Details
Physical Parameters	Dimension: 166x73×83mm Weight: 105g
Electrical Parameters	ESD: ±8KV (Air)/±4KV (Contact) Input Voltage: 5V I/O Interfaces: USB/RS232/Button Trigger
Performance Parameters	Sensor Resolution: 640×480/1280×800 Illumination: White Lighting Aiming: LED/Laser Barcode Resolution: Min. 3mil FOV: 57.6°(O)/46.6°(H)/36.8°(V) Barcode Contrast: ≥25% Print Contrast Scan Angles: Tilt ±60°/Rotation 360°/Skew ±60° Reading Indicator: LED Light
Reading Range	13mil EAN13: 50-230mm 15mil QR Code: 30-130mm
Environmental Parameters	Drop Test: 1.2m Steel Plate Drop/6,000×10cm Micro Drops Drum Test: 300×0.5m Tumbles Protection Level: IP42 Key Life: 3,000,000 Cycles Ambient Light: 0-100,000lux Humidity: 5%-95% Temperature: Operating -20~50℃/Storage -40~70℃
Decoding Capability	2D Codes: UCC Composite/Aztec (8 Types Total) 1D Codes: EAN/UPC/GS1 DataBar (16 Types Total) Postal Codes: Australian Post/British Post (10 Types Total) Stacked Codes: EAN/JAN Composites/GS1 DataBar (9 Types Total)
